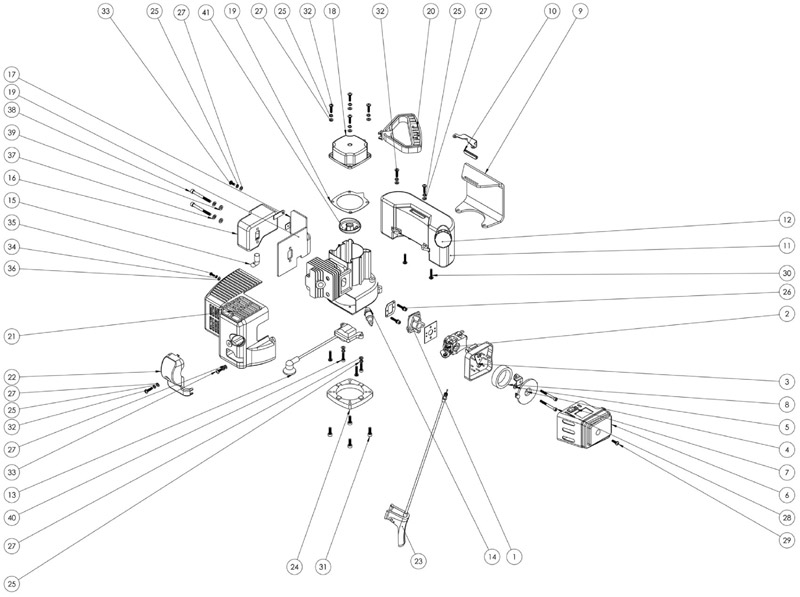

Jiffy 2-Cycle Engine Parts List
Includes SD60i Model 60, Model 30, and STX PROII Model
34
 |
|
REF # |
Jiffy/Feldman Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
4332 |
Carburetor Adapter Kit (includes 2 gaskets
and adaptor) |
FEL4332 |
$60.48
& $9.95 FLAT RATE
SHIPPING PER WHOLE ORDER |
Add To Cart |
| 2 |
4082 |
Carburetor Complete |
FEL4082 |
$70.77
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2* |
|
Carburetor Repair Kit - Primer
Bulb Sold Separately |
RCARBKIT |
$9.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2* |
|
Replacement Primer Bulb |
RM4388014 |
$3.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
4083 |
Carburetor Cover with Switch |
FEL4083 |
$40.05
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4 |
4172 |
Foam Air Filter Cover |
FEL4172 |
$14.98
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 5 |
4085 |
Carburetor Cover Mounting
Bracket |
FEL4085 |
$10.32
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
4084 |
Choke Lever / Air Filter
Assembly |
FEL4084 |
$20.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 7 |
4323 |
On/Off Switch |
FEL4323 |
$10.32
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
4171 |
Foam Air Filter |
FEL4171 |
$16.54
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 9 |
4069 |
Jiffy Billboard |
FEL4069 |
$16.79
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 10 |
4302-A |
Fuel Tank Bracket |
FEL4302-A |
$16.34
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 11 |
4080 |
Fuel Tank |
FEL4080
FUEL TANK COMPLETE WITH FUEL CAP, GROMMET, LINES AND FUEL FILTER |
$50.07
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
GROMMETKIT1
FUEL LINES, GROMMET AND FUEL FILTER ASSEMBLY |
$9.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 12 |
4196 |
Fuel Cap |
FEL4196 |
$9.98
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 13 |
4081-A |
Ignition Coil Assembly (for
serial numbers with an "A") |
FEL4081-A |
$63.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4081-S |
Ignition Coil Assembly (for
serial numbers with an "S") |
FEL4081-S |
$63.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 14 |
4002 |
Spark Plug |
FEL4002 |
$6.29
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 15 |
4078 |
Exhaust Deflector with Clamp |
FEL4078 |
$18.40
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 16 |
4299-A |
Muffler |
FEL4299-A |
$87.21
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 17 |
4298-A |
Muffler Gasket |
FEL4298-A |
$15.48
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 18 |
4057-S |
Recoil Assembly |
FEL4057-S |
$42.10
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 19 |
4300-A |
Recoil Gasket |
FEL4300-A |
$8.77
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 20 |
4180 |
Mitten Grip Recoil Handle |
FEL4180 |
$14.49
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 21 |
4075-B1D |
Black Cylinder Cover (Model
30) |
FEL4075-B1D |
$43.29
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4075-W1D |
White Cylinder Cover (Model
60) |
FEL4075-W1D |
$43.29
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4075-Y1D |
Yellow Cylinder Cover (Model
34) |
FEL4075-Y1D |
$43.29
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 22 |
4280-A |
Spark Plug Cover for serial
numbers with an "A") |
FEL4280-A |
$12.85
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4280-S |
Spark Plug Cover for serial
numbers with an "S") |
FEL4280-S |
$12.85
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 23 |
4048 |
Throttle Control Assembly
(Lever and Cable) |
FEL4048 |
$26.83
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 24 |
3973 |
Engine Adaptor |
FEL3973 |
$28.81
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 25 |
FEL4257 Engine Hardware Kit (M5 Lock
Washer) |
$25.77
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 26 |
| 27 |
| 28 |
| 29 |
| 30 |
| 31 |
| 32 |
| 33 |
| 34 |
| 35 |
| 36 |
| 37 |
| 38 |
| 39 |
| 40 |
| 41 |
4297-A / 4057-S |
Recoil Starter Assembly |
FEL4057-S |
$42.10
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
|

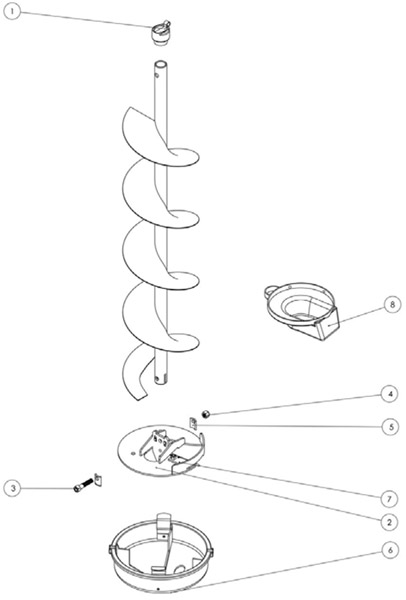

XT Drill Assembly Parts List
 |
|
REF # |
Jiffy/Feldmann Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
3996 |
Replacement E-Z Connect Collar |
FEL3996 |
$6.49
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2 |
3743 |
6" XT Head Kit |
FEL3743 |
$120.81
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3744 |
8" XT Head Kit |
FEL3744 |
$124.06
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3745 |
9" XT Head Kit |
FEL3745 |
$129.22
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3746 |
10" XT Head Kit |
FEL3746 |
$142.52
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
2259 |
Hex Cap Screw 3/8-16 x 1 3/4" |
FEL2259 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4 |
1938 |
Locknut 3/8-16 x 1 3/4" |
FEL1938 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 5 |
3503 |
D-Icer Head Support Clip |
FEL3503 |
$2.05
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
2120 |
8" Easy Snap Blade Protector |
FEL2120 |
$28.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2121 |
9" Easy Snap Blade Protector |
FEL2121 |
$28.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2205 |
10" Easy Snap Blade Protector |
FEL2205 |
$28.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 7 |
3536 |
6" Ripper Blade - Replaces
#3292, #3292-D |
FEL3536 |
$38.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3538 |
8" Ripper Blade - Replaces
#1801, #1801-D |
FEL3538 |
$38.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3539 |
9" Ripper Blade - Replaces
#1802, #1802-D |
FEL3539 |
$42.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3540 |
10" Ripper Blade - Replaces
#1803, #1803-D |
FEL3540 |
$42.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
3301 |
6" Blade Protector |
FEL3301 |
$21.49
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
|

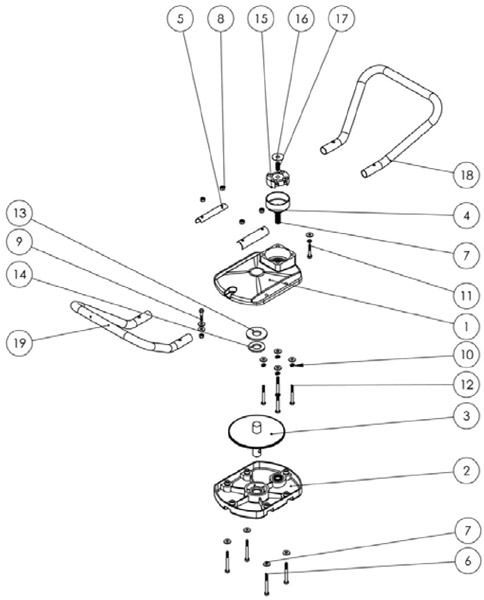

Transmission Parts List
 |
|
REF # |
Jiffy/Feldmann Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
3720 |
Upper Gear Case Assembly |
FEL3720 |
$65.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2 |
3721 |
Lower Gear Case Assembly |
FEL3721 |
$63.06
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
3707 |
Main Gear and Shaft Assembly |
FEL3707 |
$100.14
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4 |
3681 |
Clutch Drum and Pinion Assembly |
FEL3681 |
$78.56
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 5 |
3722 |
Handle Plate |
FEL3722 |
$14.85
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
3351 |
Hex Capscew (1/4-20 x 2 1/2) |
FEL3351 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 7 |
1689 |
Flat Washer (1/4") |
FEL1689 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
2336 |
Locknut (1/4-20) |
FEL2336 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 9 |
3228 |
Hex Capscrew (1/4-20 x 1 1/4) |
FEL3228 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 10 |
1119 |
Lock Washer (1/4") |
FEL1119 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 11 |
1683 |
Hex Capscrew (1/4-20 x 1 1/2) |
FEL1683 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 12 |
1996 |
Hex Capscrew (1/4-20 x 2 1/4) |
FEL1996 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 13 |
3634 |
Teflon Washer (7/8") |
FEL3634 |
$5.41
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 14 |
1670 |
Flat Washer (7/8") |
FEL1670 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 15 |
2383 |
Clutch Driver |
FEL2383 |
$60.42
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 16 |
2768 |
Clutch Washer |
FEL2768 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 17 |
4049 |
Set Screw (3/4*24 x 1) |
FEL4049 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 18 |
4424 |
Cushion Wing Handle |
FEL4424 |
$45.17
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4131 |
Non-Cushion Wing Handle |
FEL4131 |
$25.83
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 19 |
4481 |
Cushion Wing Handle (Throttle Side) |
FEL4481 |
$45.17
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4127 / 4410 |
Non-Cushion Wing Handle (Throttle Side) |
FEL4410 |
$25.83
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
