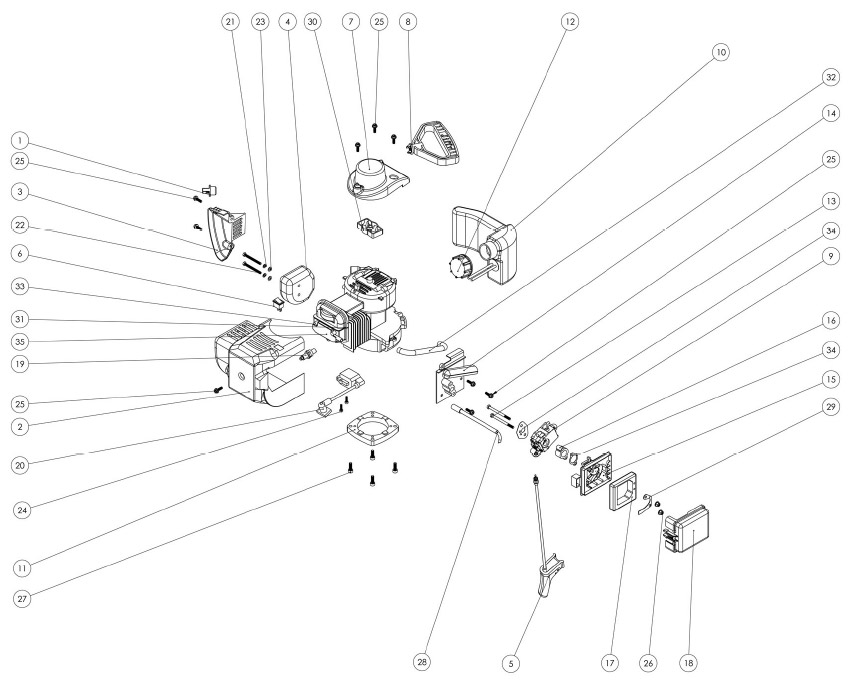

4G Lite Ice Drill Engine Parts List
 |
|
REF # |
Jiffy/Feldmann Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
4348 |
Oil Fill Dipstick w/ O-Ring |
FEL4348 |
$10.32
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2 |
4452 |
Yellow Engine Shroud |
FEL4452 |
$7.19
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
4456 |
Muffler Cover |
FEL4456 |
$25.58
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4 |
4420 |
Muffler |
FEL4420 |
$50.14
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 5 |
4048 |
Throttle Control Assembly
(Lever and Cable) |
FEL4048 |
$26.83
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
4323 |
On/Off Switch |
FEL4323 |
$10.32
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 7 |
4449 |
Recoil Assembly |
FEL4449 |
$42.25
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
4180 |
Mitten Grip Recoil Handle |
FEL4180 |
$14.49
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 9 |
4469 |
Carburetor |
FEL4469 |
$90.67
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 9* |
|
Carburetor Repair Kit - Primer
Bulb Sold Separately |
RCARBKIT |
$9.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 9* |
|
Replacement Primer Bulb |
RM4388014 |
$3.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 10 |
4455 |
Fuel Tank w/ Fuel Lines and
Fuel Cap |
FEL4455 |
$69.73
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 11 |
3973 |
Engine Adaptor |
FEL3973 |
$28.81
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 12 |
4468 |
Fuel Tank Cap |
FEL4468 |
$8.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 13 |
4473 |
Engine Hardware Kit (M5 x 70
Hex Cap screw) |
FEL4474 |
$20.62
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 14 |
4446 |
Carburetor Adaptor |
FEL4446 |
$23.25
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 15 |
4378 |
Inside Air Cleaner Cover with
Choke Lever |
FEL4378 |
$10.93
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 16 |
4379 |
Air Cleaner Spacer |
FEL4379 |
$9.68
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 17 |
4338 |
Foam Air Filter Element |
FEL4338 |
$10.06
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 18 |
4337 |
Outside Air Cleaner Cover |
FEL4337 |
$13.95
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 19 |
4444 |
Spark Plug |
NGKCMR5H |
$3.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 20 |
4458 |
Ignition Coil |
FEL4458 |
$79.59
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 21 |
4474 |
Engine Hardware
Kit |
FEL4474 |
$20.62
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 22 |
| 23 |
| 24 |
| 25 |
| 26 |
| 27 |
| 28 |
4511 |
Breather Tube |
FEL4511 |
$20.27
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 29 |
4535 |
Air Cleaner Retention Clip |
NLA |
NLA |
NLA |
| 30 |
4450 |
Recoil Starter Cup |
FEL4450 |
$16.41
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 31 |
4522 |
Valve Cover Gasket |
FEL4522 |
$15.71
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 32 |
4521 |
Balance Tube Kit w/ Clamps |
FEL4521 |
$25.65
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 33 |
4474 |
Engine Hardware Kit |
FEL4474 |
$20.62
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 34 |
1002 |
Carburetor and Air Cleaner
Gasket Kit |
FEL1002 |
$16.53
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 35 |
4543 |
Valve Cover |
FEL4543 |
$21.23
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
|

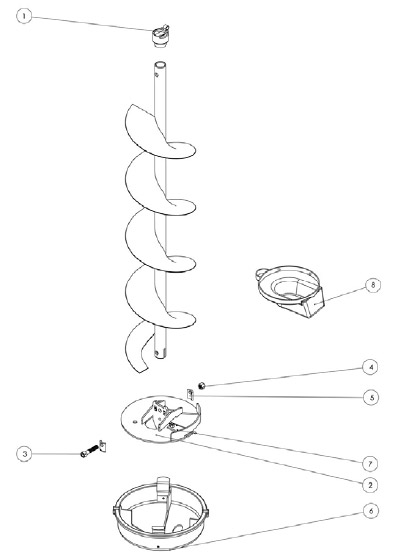

XT Drill Assembly Parts List
 |
|
REF # |
Jiffy/Feldman Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
3996 |
Replacement E-Z Connect Collar |
FEL3996 |
$6.49
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2 |
3743 |
6" XT Head Kit |
FEL3743 |
$120.81
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3744 |
8" XT Head Kit |
FEL3744 |
$124.06
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
2259 |
Hex Cap Screw 3/8-16 x 1 3/4" |
FEL2259 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4 |
1938 |
Locknut 3/8-16 x 1 3/4" |
FEL1938 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 5 |
3503 |
D-Icer Head Support Clip |
FEL3503 |
$2.22
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
2120 |
8" Easy Snap Blade Protector |
FEL2120 |
$28.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 7 |
3536 |
6" Ripper Blade - Replaces
#3292, #3292-D |
FEL3536 |
$38.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3538 |
8" Ripper Blade - Replaces
#1801, #1801-D |
FEL3538 |
$38.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
3301 |
6" Blade Protector |
FEL3301 |
$21.49
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
|
Transmission Parts List
 |
|
REF # |
Eskimo/Ardisam Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
3720 |
Upper Gear Case Assembly |
FEL3720 |
$65.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2 |
3721 |
Lower Gear Case Assembly |
FEL3721 |
$63.06
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
3707 |
Main Gear and Shaft Assembly |
FEL3707 |
$100.14
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4 |
3681 |
Clutch Drum and Pinion Assembly |
FEL3681 |
$78.56
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 5 |
3722 |
Handle Plate |
FEL3722 |
$14.85
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
3351 |
Hex Capscew (1/4-20 x 2 1/2) |
FEL3351 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 7 |
1689 |
Flat Washer (1/4") |
FEL1689 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
2336 |
Locknut (1/4-20) |
FEL2336 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 9 |
3228 |
Hex Capscrew (1/4-20 x 1 1/4) |
FEL3228 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 10 |
1119 |
Lock Washer (1/4") |
FEL1119 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 11 |
1683 |
Hex Capscrew (1/4-20 x 1 1/2) |
FEL1683 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 12 |
1996 |
Hex Capscrew (1/4-20 x 2 1/4) |
FEL1996 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 13 |
3634 |
Teflon Washer (7/8") |
FEL3634 |
$5.41
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 14 |
1670 |
Flat Washer (7/8") |
FEL1670 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 15 |
2383 |
Clutch Driver |
FEL2383 |
$60.42
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 16 |
2768 |
Clutch Washer |
FEL2768 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 17 |
4049 |
Set Screw (3/4*24 x 1) |
FEL4049 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 18 |
4424 |
Cushion Wing Handle |
FEL4424 |
$45.17
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 19 |
4481 |
Cushion Wing Handle (Throttle Side) |
FEL4481 |
$45.17
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
