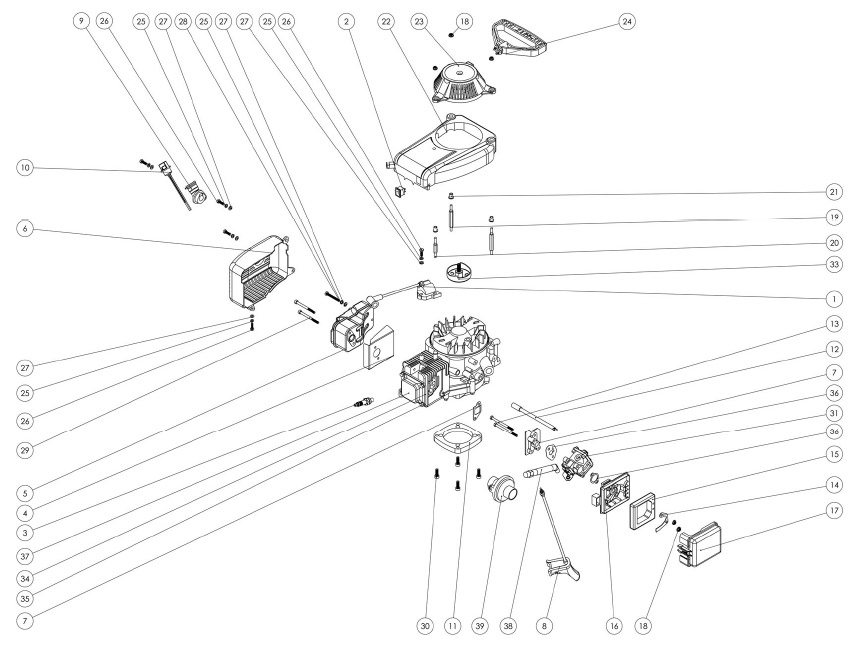

Pro4 Gen 3 Ice Drill Engine Parts List
 |
|
REF # |
Jiffy/Feldmann Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
4327 |
Ignition Coil |
FEL4327 |
$79.59
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2 |
4323 |
On/Off Switch |
FEL4323 |
$10.32
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
4290 |
Spark Plug |
FEL4290 |
$6.85
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4 |
4308 |
Muffler Gasket |
NLA |
NLA |
NLA |
| 5 |
4306 |
Muffler |
FEL4306 |
$50.14
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
4307 |
Muffler Cover |
FEL4307 |
$25.58
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 7 |
4369 |
Carburetor Adapter Kit |
FEL4369 |
$23.25
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
4048 |
Throttle Control Assembly
(Lever and Cable) |
FEL4048 |
$26.83
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 9 |
4349 |
Oil Fill Tube |
FEL4349 |
$14.97
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 10 |
4345 |
Oil Fill Dipstick with O-Ring |
FEL4345 |
$13.95
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 11 |
3973 |
Engine Adaptor |
FEL3973 |
$28.81
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 12 |
4511 |
Breather Tube |
FEL4511 |
$20.27
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 13 |
4474 |
Engine Hardware Kit (M5 x 75 Capscrew) |
FEL4474 |
$20.62
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 14 |
4535 |
Air Cleaner Retention Clip |
NLA |
NLA |
NLA |
| 15 |
4338 |
Foam Air Filter Element |
FEL4338 |
$10.06
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 16 |
4339 |
Inside Air Cleaner Cover |
FEL4339 |
$17.77
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 17 |
4337 |
Outside Air Cleaner Cover |
FEL4337 |
$13.95
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 18 |
4474 |
Engine Hardware Kit (M5 Flange
Nut |
FEL4474 |
$20.62
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 19 |
4539 |
Engine Cover
Mounting Hardware Kit |
FEL4539 |
$7.49
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 20 |
| 21 |
| 22 |
4322 |
Yellow Engine Shroud |
FEL4322 |
$35.52
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 23 |
4304
4565 |
Recoil Assembly |
FEL4565 |
$50.61
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 24 |
4180 |
Mitten Grip Recoil Handle |
FEL4180 |
$14.49
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 25 |
4474 |
Engine Hardware Kit (M5 Lock
Washer) |
FEL4474 |
$20.62
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 26 |
Engine Hardware Kit (M5 x 16 Capscrew) |
| 27 |
Engine Hardware Kit (M5 Flat
Washer) |
| 28 |
Engine Hardware Kit (M5 x 40 Capscrew) |
| 29 |
Engine Hardware Kit (M5 60
Hex Capscrew) |
| 30 |
Engine Hardware Kit (M6 X 18
Sockethead Capscrew) |
| 31 |
4263 |
Carburetor |
FEL4263 |
$74.63
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 33 |
4305 |
Recoil Starter Cup |
FEL4305 |
$12.79
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 34 |
4524 |
Valve Cover Gasket |
FEL4524 |
$15.94
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 35 |
4474 |
Engine Hardware Kit |
FEL4474 |
$20.62
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 36 |
1002 |
Carburetor and Air Cleaner
Gasket Kit |
FEL1002 |
$16.53
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 37 |
4542 |
Valve Cover |
FEL4542 |
$21.23
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 38 |
4585 |
Propane Hose |
FEL4585 |
$48.08
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 39 |
4550 |
Propane Regulator |
FEL4550 |
$74.63
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
|

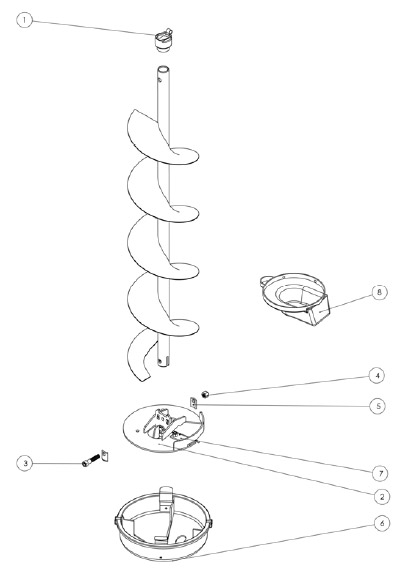

STX PRO Drill Assembly Parts List
 |
|
REF # |
Jiffy/Feldmann Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
3996 |
Replacement E-Z Connect Collar |
FEL3996 |
$7.15
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2 |
3751 |
6" STX Pro Head Kit |
FEL3751 |
$172.50
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3752 |
8" STX Pro Head Kit |
FEL3752 |
$174.70
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3753 |
9" STX Pro Head Kit |
FEL3753 |
$180.27
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3754 |
10" STX Pro Head Kit |
FEL3754 |
$189.05
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
2259 |
Hex Cap Screw 3/8-16 x 1 3/4" |
FEL2259 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4 |
1938 |
Locknut 3/8-16 x 1 3/4" |
FEL1938 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 5 |
3503 |
D-Icer Head Support Clip |
FEL3503 |
$2.22
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
2120 |
8" Easy Snap Blade Protector |
FEL2120 |
$28.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2121 |
9" Easy Snap Blade Protector |
FEL2121 |
$28.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2205 |
10" Easy Snap Blade Protector |
FEL2205 |
$28.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 42 |
3586-STX |
6" STX Blade Kit |
FEL3586-STX |
$79.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3588-STX |
8" STX Blade Kit |
FEL3588-STX |
$79.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3589-STX |
9" STX Blade Kit |
FEL3589-STX |
$85.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3590-STX |
10" STX Blade Kit |
FEL3590-STX |
$85.99
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
3301 |
6" Blade Protector |
FEL3301 |
$21.49
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
|

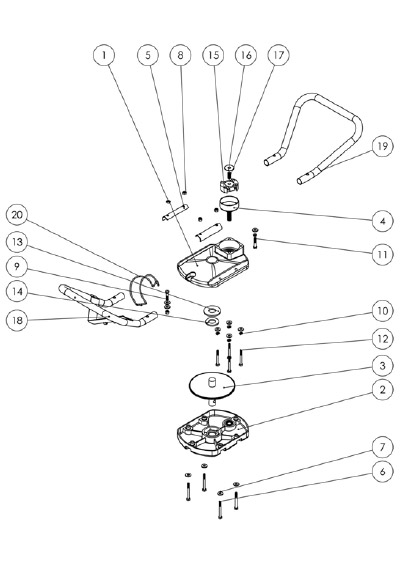

Transmission Parts List
 |
|
REF # |
Jiffy/Feldmann Part # |
Description |
Our Part # |
Your Price |
Buy Now |
| 1 |
3720 |
Upper Gear Case Assembly |
FEL3720 |
$65.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 2 |
3721 |
Lower Gear Case Assembly |
FEL3721 |
$63.06
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 3 |
3707 |
Main Gear and Shaft Assembly |
FEL3707 |
$100.14
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 4 |
3681 |
Clutch Drum and Pinion Assembly |
FEL3681 |
$78.56
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 5 |
3722 |
Handle Plate |
FEL3722 |
$14.85
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 6 |
3351 |
Hex Capscew (1/4-20 x 2 1/2) |
FEL3351 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 7 |
1689 |
Flat Washer (1/4") |
FEL1689 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 8 |
2336 |
Locknut (1/4-20) |
FEL2336 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 9 |
3228 |
Hex Capscrew (1/4-20 x 1 1/4) |
FEL3228 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 10 |
1119 |
Lock Washer (1/4") |
FEL1119 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 11 |
1683 |
Hex Capscrew (1/4-20 x 1 1/2) |
FEL1683 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 12 |
1996 |
Hex Capscrew (1/4-20 x 2 1/4) |
FEL1996 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 13 |
3634 |
Teflon Washer (7/8") |
FEL3634 |
$5.41
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 14 |
1670 |
Flat Washer (7/8") |
FEL1670 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 15 |
2383 |
Clutch Driver |
FEL2383 |
$60.42
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 16 |
2768 |
Clutch Washer |
FEL2768 |
$1.33
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 17 |
4049 |
Set Screw (3/4*24 x 1) |
FEL4049 |
$1.00
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 18 |
4426 |
Cushion Wing Handle (Throttle
Side) |
FEL4426 |
$62.02
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 19 |
4424 |
Cushion Wing Handle |
FEL4424 |
$45.17
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
| 20 |
2627 |
Propane Tank Spring Clamp |
FEL2627 |
$13.96
& $9.95 FLAT RATE SHIPPING PER WHOLE
ORDER |
Add To Cart |
