Scag Lawn Mower Repair Parts By Category
Bearings Belts Blades Brake Parts Cables Caster Parts Coupler Damper Electric Clutch Electrical Parts Engine Parts Gas Caps Hydro Pump Pulleys Seats Spindle Assy. Starter Solenoid Transmission Filter Transmission Wheel Motor Wheels

Universal Parts

Belts/Pulleys/Idlers Cables Chemicals/Lubricants Covers Electrical Eletcric Clutches Fuel Fittings Fuel Shutoff Valves Hitches Hydro Pumps Seats Small Engine Parts Tires/Tubes/Wheels Transmission Wheel Motor



FOR SCAG ORIGINAL EQUIPMENT PARTS WITH PARTS LOOKUP DIAGRAMS, PLEASE READ BELOW BEFORE CLICKING ON THE DIAGRAM.
The parts lookup website is original equipment parts only. This website has aftermarket and OEM mix on the most common parts. Please note that when you go to the new website if any items are in your cart they will not transfer over. All though they will be saved for 24 hours. When you are looking to place your order and have items currently in this website's shopping cart and want to add OEM parts from the other website, please phone your order in, please see our ordering department page for the proper phone number and hours of operation. - Please Click Image Below to be Redirected to Our OEM Website With Parts Lookup Diagrams

SCAG

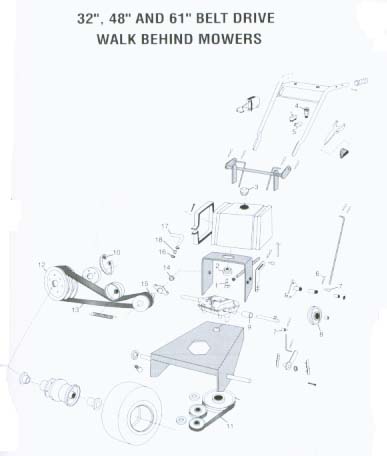

Ref No. Description Scag No. Stens No.
1 Fuel Control 48056 O07-400
2 Gas Bushing 48309 RM70-30-011
3 Gas Cap 48311 S125033
4 Key Switch 48609 S430029
5 Switch 48717 ROT9664
6 Pin 04062-02 S416826
7 Adjustment Nut 43032 S285676
8 Pully 48198 S280533
9 Coupler 48226/46513 S240860
10 Brake Pad 48210 S285920
11 Transmission Belt 48203 ROT7791
12 Pulley 48200 ROT9397
13 Wheel Belt 48202A ROT5235
14 Bearing 48224 ROT8198
15 Pulley 48199 S275697
16 Hose Clamp 48059-01 S120113
17 Fuel Line 1/4" ID, 1/2" OD   ROT1502
18 Fuel Filter   RM80-35-001

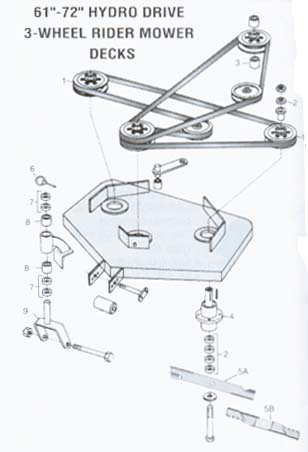

Ref No. Description Scag No. Stens No.
1 Spindle Pulley 48127/48924 ROT11228
2 Blade Spacer 1/4" 43038/43278 ROT1191
3 Bearing 48102 AHBRG0016
4 Spindle Assembly 46020 RM80-11-723
5A
 		 Blade 61" Cut
Blade 72" Cut		 48111
48112		 ROT3434
S340129
5B
 		 Raptor Mulching Blade
61" Cut		 48111
 		 ROT6299
6 Linch Pin 04066-01 S285540
7 Spacer 43037-01 S285540
8 Bronze Bearing 48100-01 ROT8305
9 Caster Yoke 45006 S285498

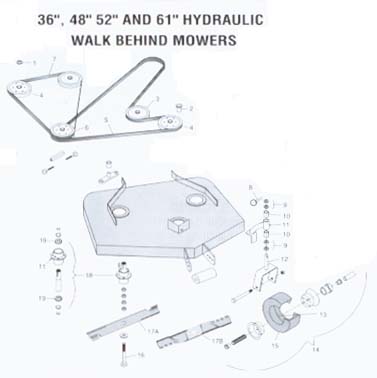

Ref No. Description Scag No. Stens No.
1 Blade Spacer 1/4" Thick 43038/43278 ROT1191
2 Pulley Hub 48141 ROT6532
3 Idler Pulley 48269 O78-300
4 Deck Pulley 48127/48924 ROT11228
5

 		 36" Deck Drive Belt
48" Deck Drive Belt
52" Deck Drive Belt		 48204
48089
48286		 S265748
ROT7790
ROT7638
6 V-Belt Idler Pulley 48181 ROT10414
7

 		 Blade Belt 48" Cut
Blade Belt 52" Cut
Blade Belt 61" Cut		 48087
48285
48265		 S265740
S258056
ROT7608
8 Linch Pin 04066-01 S285540
9 Spacer 1/2" 43037-01 S285011
10 Bronze Bushing 48100-01 S225722
11 Grease Fitting 48114-01 S416552
12 Castor Yoke 45006 S285498
13 Tube 48006-03 ROT880
14 Wheel Assembly 48006-01 S175600
15 9/350-4 Smooth Tread Tire 48006-02 ROT908
16 Blade Bolt 04001-41 ROT8343
17A

 		 Blade Belt 32" & 48" Cut
Blade Belt 36" & 52" Cut
Blade Belt 61" Cut		 48110/481706
48185/481711
48304		 O191620
ROT3442
ROT10930
17B

 		 Raptor Mulching Blade  32" & 48" Cut
Raptor Mulching Blade 36" & 52" Cut
Raptor Mulching Blade 61" Cut		 48110
48185/4811711
48304/48111		 ROT6300
S303116
ROT6299
18 Spindle Assembly 46020 S285201
19 Heavy-Duty Spindle Bearing 48101-02 S230090

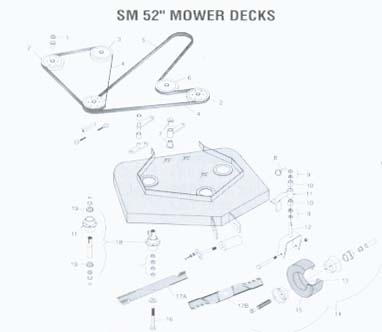

Ref No. Description Scag No. Stens No.
1 Blade Spacer 1/4" 43278 S410294
2 Deck Pulley 48127/48924 ROT11228
3 V-Groove Idler Pulley 48181 ROT10414
4 Blade Belt SM 52" 48285 S258056
5 Drive Belt 52" Cut 48530 S258103
6 Flat Idler Pulley 48269 O78-300
7 Bushing 48100-02 ROT8476
8 Linch Pin 7/16" 04066-01 S285540
9 Castor Spacer 43037-01 S285011
10 1/2" Thick Bushing 48100-01 S225722
11 Grease Fitting 48114-01 S416552
12 Castor Yoke 45006 S285498
13 Tube 48006-03 S170225
14 Wheel Assembly 48006-01 S175600
15 9/350-4 Smooth 48006-02 S160150
16 Tread Tire Blade Bolt 04001-41 ROT8343
17A Blade/SM52" Cut 48108/481707 ROT3404
17B Raptor Mulching Blade 52" Cut 48108 S303116
18 Spindle Assembly 46020 S285201
19 Heavy-Duty Spindle Bearing 48101-02 S230090

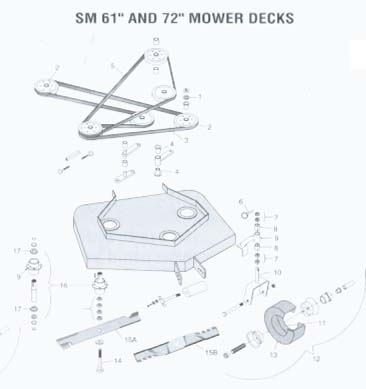

Ref No. Description Scag No. Stens No.
1 Blade Spacer 1/4" 43278 S410294
2 Pulley 48924 ROT11228
3 Blade Belt SM61" Cut 48265 ROT7608
4 Bushing 48100-02 S225900
5
 		 Drive Belt 61" Cut
Drive Belt 72" Cut		 48083/48089
48359		 ROT7634
ROT7639
6 Linch Pin 7/16 04066-01 SS285540
7 Castor Yoke Spacer 1/2" Thick 43037-01 S285011
8 Bushing 48100-01 S225722
9 Grease Fitting 48114-01 S416552
10 Castor Yoke 45006 S285498
11 Tube 48006-03 S170225
12 Wheel Assembly 48006-01 S175600
13 9/350-4 Smooth Tread Tire 48006-02 S160150
14 Blade Bolt 04001-41 ROT8343
15A
 		 Blade SM 61" Cut
Blade SM 72" Cut		 48111
48112		 O91626
ROT6026
15B Raptor Mulching Blade 61" Cut 48111 ROT6299
16 Spindle Assembly 46020 S285201
17 Heavy-Duty Bearing 48101-02 S230090

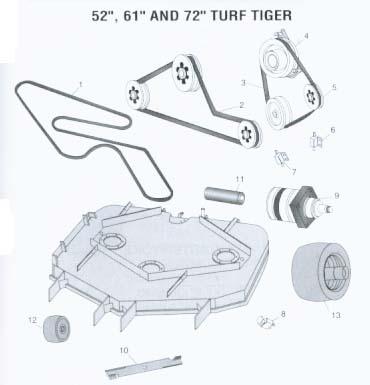

Ref No. Description Scag No. OUR No.
1
 		 Belt, Deck 61"
Belt, Deck 72"		 481558
481980		 ROT10044
ROT12233
2 Belt. Pump Drive 481461 ROT10043
3 Belt, Deck Drive 481460 ROT10317
4 Electric Clutch 1 1/8" 461395 S255527
5 Idler 48181 ROT10414
6 Switch 481637 ROT9660
7 Switch, Seat 481638 S430413
8 Switch, PTO 481687 ROT9656
9 Wheel Motor 481529 S025507
10





 		 Blade, 52" Cut, hi-lift
Blade, Raptor, 52" cut
Blade, 52" Cut
Blade,61" Cut, hi-lift
Blade, 61" Cut
Blade, Raptor, 61" Cut
Blade, 72" Cut		 481711
481711/481707
481707
48304
48111
48111
48112		 ROT3442
S303116
O91622
ROT10930
O91626
ROT6299
ROT6026
11 Deck Roller 48038 S210025
12 Elite 400 Tire Assembly
Tire, Smooth
Tire, Smooth		   S175729
ROT8949
S160113
13 Tire, 23x10.50-12, 52" only, Turf Master
Tire, 24x12-12, Turf Master		   ROT9190
S165404
